This set is a complete combo of Frame, motors, propellers and ESCs required for a quadcopter
R450 QUADCOPTOR FRAME WITH INTEGRATED PCB FOR EASY WIRING:
- Built from quality glass fiber and polyamide nylon.
- Integrated PCB connections for direct soldering of your ESCs
- Pre-threaded brass sleeves for all of the frame bolts.
- Colored arms for orientation to keep you flying in the right direction.
- Large mounting tabs on main frame bottom plate for easy camera mounting.
- Easy assembly.
- Width: 450mm
- Height: 55mm
- Weight: 270g (w/out electronics)
- Motor Mount Bolt Holes: 16/19mm

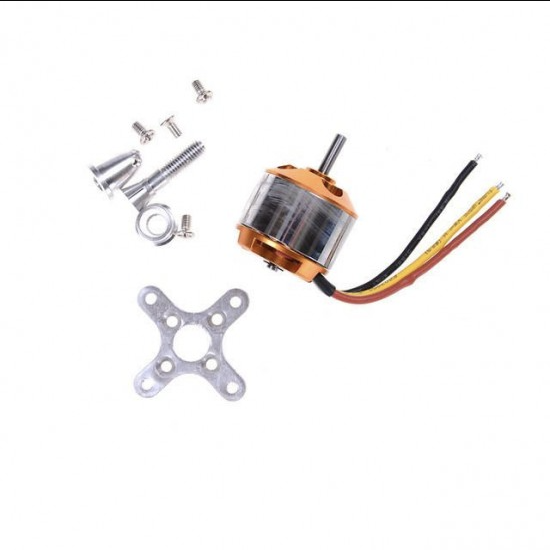

RC BRUSHLESS MOTOR 2212 1000KV WITH PROPELLER ADAPTOR:
- Weight 52 gm
- Runs on 2-3 Cell Li-Po battery
- ESC Requirement minimum 25A
- Length 43.5mm with shaft
- Diameter 28.5mm
- Shaft Diameter 3.17mm
- 980 RPM/V no load speed
- Free Load Current 2.5A
- Maximum Efficiency : 86%
- Thrust with 1047 Prop at 12V: 880gm
- Included : Propeller Adaptor, Motor Mount, Mounting Screw
Propellers
2 Normal props (Puller) + 2 reverse props (Pusher) - total 4 props.
10x4.5 inch ABS + Glass fiber plastic.
30A Brushless ESC:
- High rate PWM
- With simonk Firmware
- Low resistance
- Sixteen cells Max (with BEC disabled)
- User programmable brake
- Low voltage auto setting based on battery
- Throttle range self-adjusting
- Soft start ramp up
- Auto motor cutoff with reset
- Runs motor in forward or reverse
- Safe power arming program ensures motor will not run accidentally after turn on
- Low torque start
- Auto shut down when signal is lost
- Constant Current: 30A
- BEC 3A
- Input Volt: 6V - 12V
- Max Current: 40A
- Low-Voltage Cutoff: Auto detect and set
- Size: 56mm x 24mm x 8.5mm
- Weight: 26g
Included Product Links:
R450 QUADROTOR FRAME WITH INTEGRAED PCB FOR EASY WIRING
RC BRUSHLESS MOTOR 2212 1000KV WITH PROPELLER ADAPTOR
COUNTER ROTATING PROPELLER 1045/1045R FOR QUADROTOR-MULTIROTOR
BRUSHLESS MOTOR SPEED CONTROLLER ESC with simonk firmware - 30A
Product Name |
QUADCOPTER ENTRY LEVEL KIT |
Minimum Order |
1 |
Shipping Cost |
120 |
GST |
18% Including |
|
|
